RF Level Transmitter

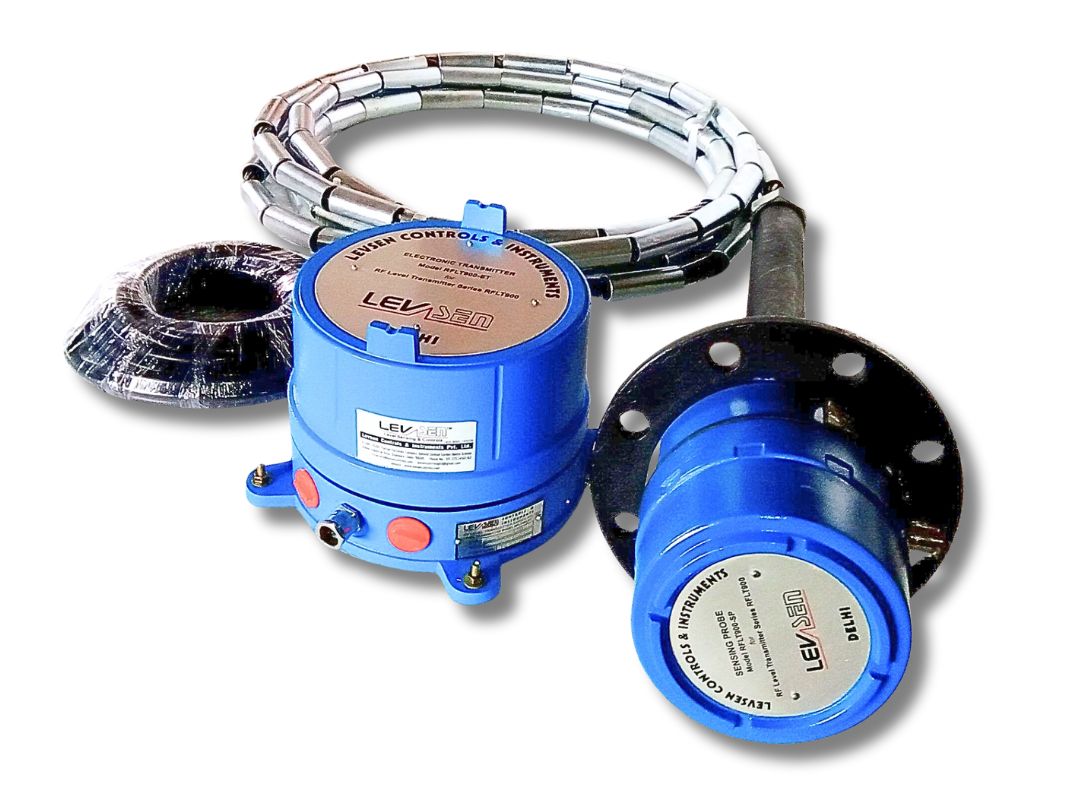

RADIO FREQUENCY LEVEL TRANSMITTER (CONTINUOUS) {SERIES-RFLT900}
![](images/tf-level-transmitter-image1.jpg)
A perfect Level Transmitter based on Radio Frequency principle for Continuous level monitoring of Solids, Liquids & Slurries.

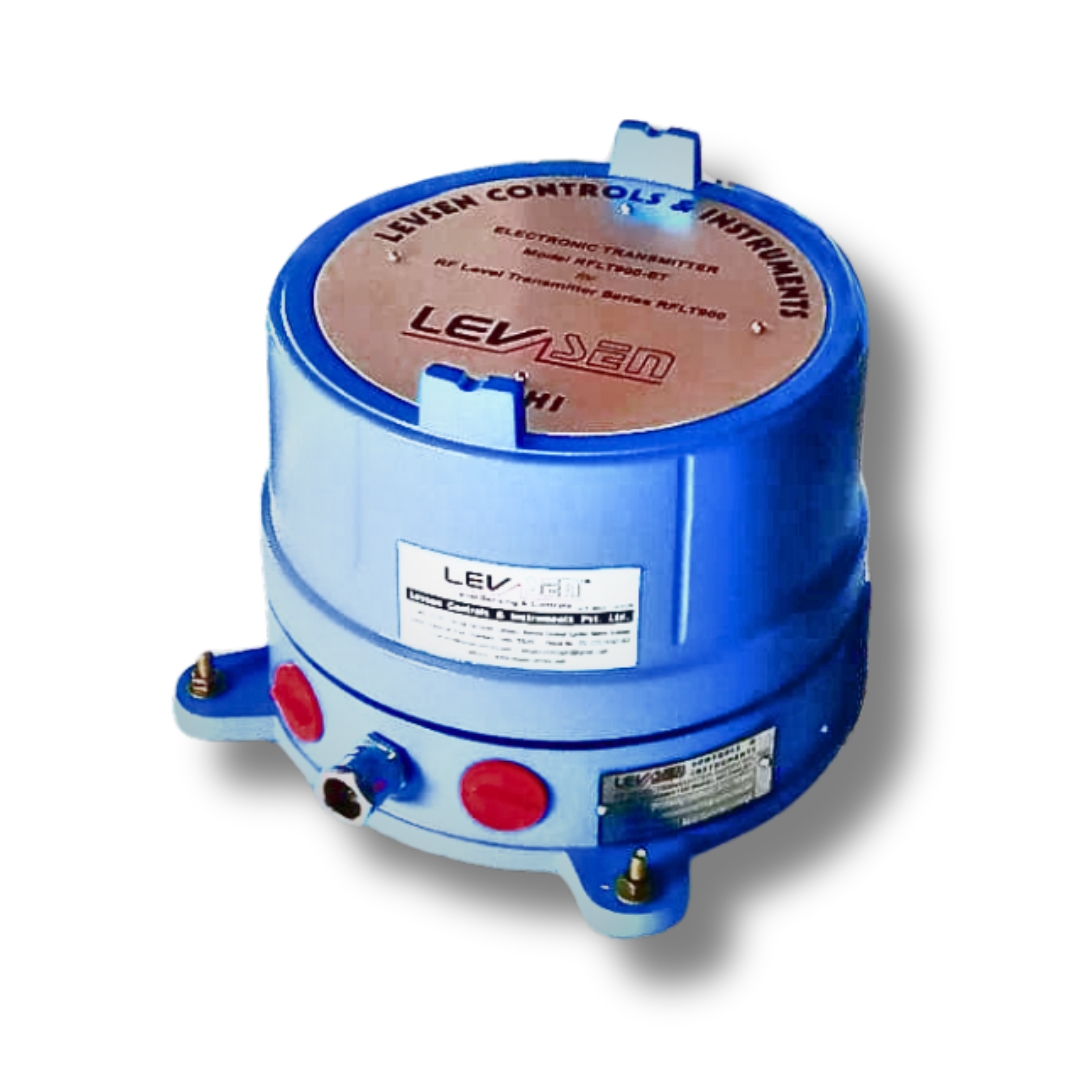

Electronic Transmitter (Model RFLT900-ET)
Electronic Transmitter contains entire electronics & adjustment housed in a Dust/Weather proof enclosure and it is mounted separately at a convenient location remote from sensing probe.
![](images/tf-level-transmitter-image2.jpg)
Specification:
Range |
|
upto 50 mtrs |
Power supply |
|
230 / 110 VAC |
Power supply |
|
4 to 20 mA (Isolated) |
Mounting |
|
Remote from probe (max 25 mtrs distance) |
Location |
|
Outdoor heavy dust area |
Enclosure |
|
Cast Aluminium, Dust / Weather proof |
Ingress Protection |
|
IP-65 |
Cable Entry |
|
Three Nos. |
- 3/4 ET for connection f or power cable
- 5/8 ET of Coaxial Cable
- 3/4 ET for Output Signal Cable
Compatibility |
|
Compatible to any PLC & DCS |
Display |
|
Digital Display with Set points 2 or 4 Nos. (Optional) |

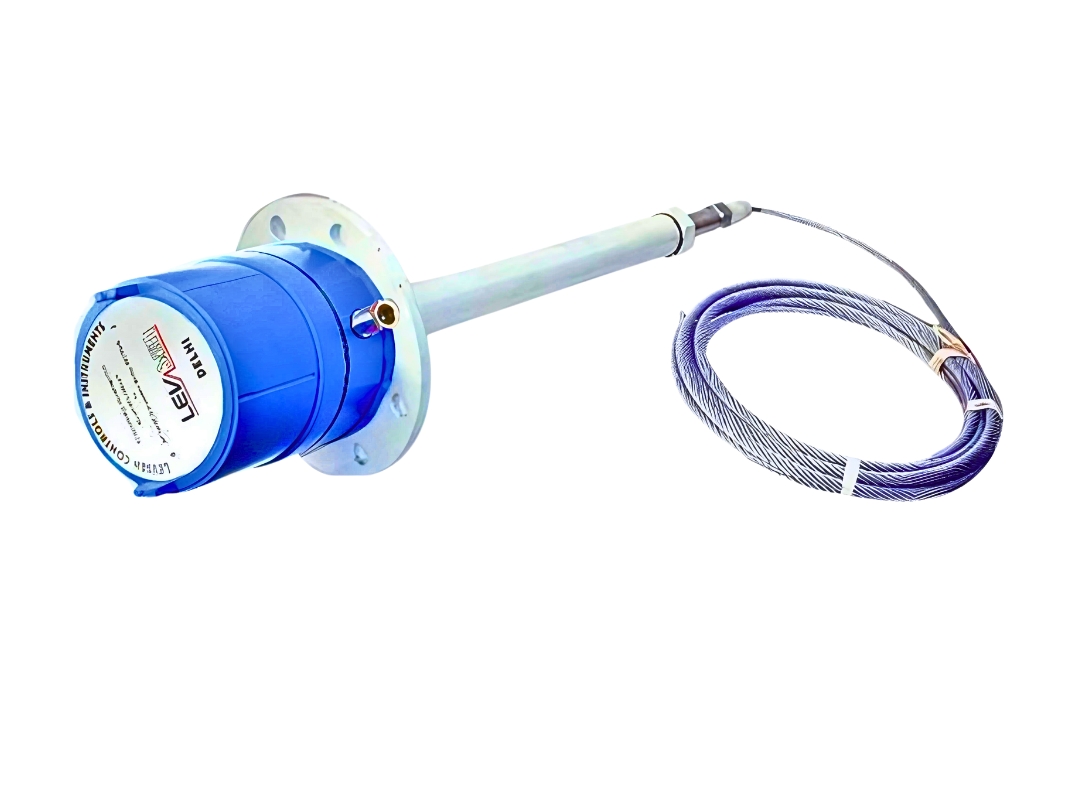

Sensing Probe (RFLT900-SP)
Levsen RF Sensing probe contains no Electronics & no moving part. It is mounted in Tanks/Hopper/Vessels/Silos etc. of application material.
![](images/rf-transmitter_clip_image004.jpg)
Specification:
Probe Insertion Length/Range |
|
50 mtrs max (As required) |
Process Temperature |
|
250 / 450ºC |
Process Connection |
|
40 NB Thread or Flange (As required) |
Protection |
|
IP 65 |
Mounting |
|
Top |
Probe Head |
|
Cast Aluminum, Dust / Weather proof |
Insulation |
|
PTFE / Ceramic |
Electronics |
|
Remote (no electronic on Probe) |
Compatible Electronics |
|
Electronic Transmitter (Model RFLT900-ET) |
Cable to Electronic Controller |
|
RF Coaxial cable |
Application: Solids (Powder & Granules) in particle size finest to max. 200 mm.

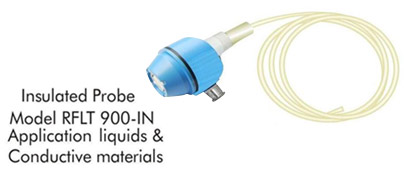

Application: Liquid & Conductive Materials
![](images/rf-transmitter_clip_image006.jpg)
|
