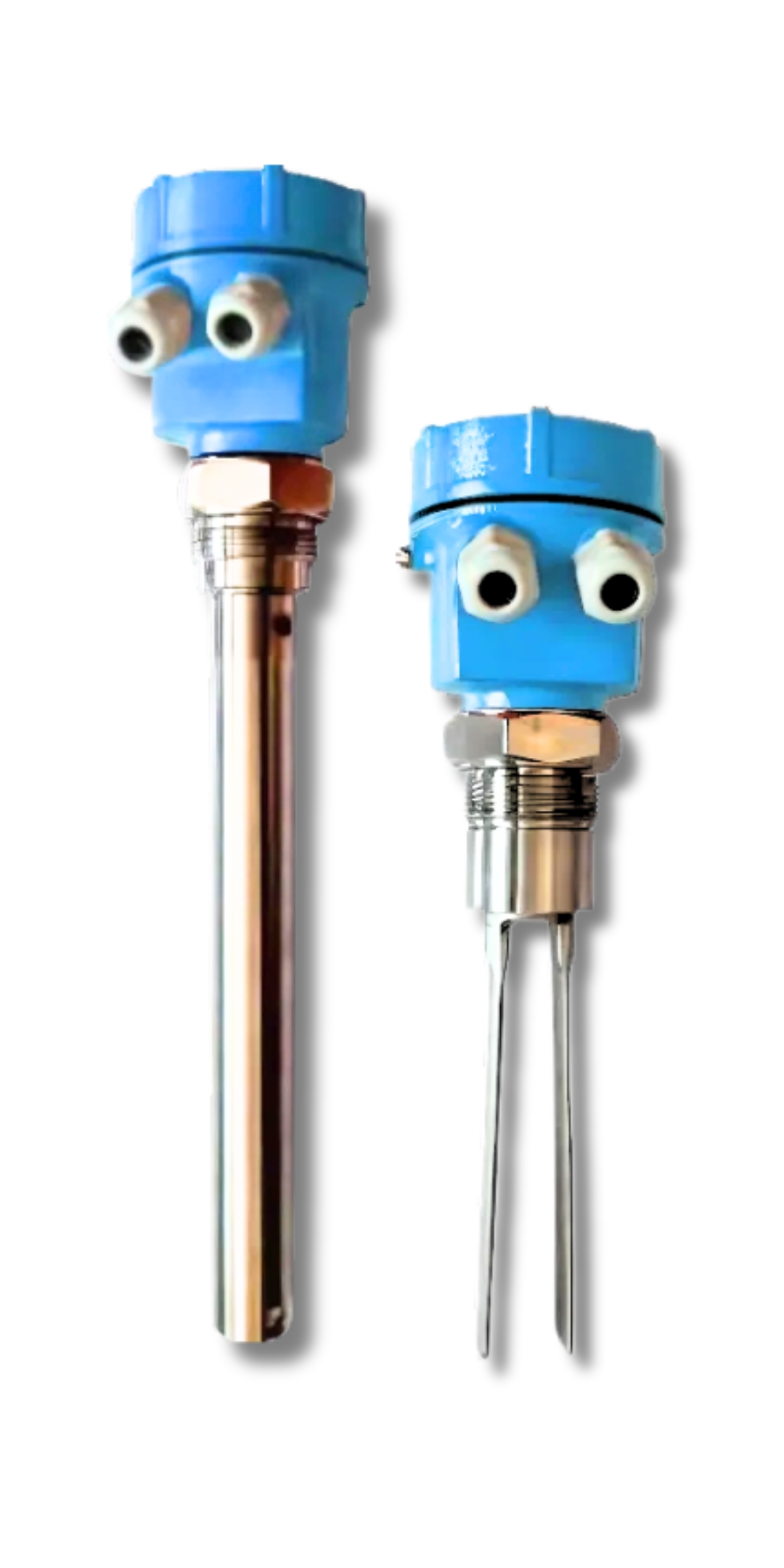

Vibrating Rod / Fork Level Switch Model VFLS-51
VIBRATING FORK
TECHNICAL SPECIFICATIONS (STADARD):
SWITCHING UNIT: |
|
Housing: Aluminum, weather proof, powder coated. Integral with The probe/ suitable for back panel mounting.
Cable entry: 2 nos.
Power consumption: 2 VA
Mains Voltage: 230/110 V AC (+/-15%), 50 Hz OR 24 V DC
Output: 2 sets of potential free c/o contacts rated at 5 amps, 230 V AC for non-inductive loads.
Switching delay: Continuously adjustable From 1 to 20 sec. probe Free or probe covered. (Optional)
Safety operation: Field selected switch over for min. or max. (FSL/FSH) switching points.
Switch status display: Green LED shows Normal, Red LED shows alarm. |
FORK (SENSING PROBE) |
Mounting: Screwed Or Flanged
Sense: Fork, Stainless steel
Extension: Pipe
Length : 250 (standard) upto 3000 mm and as per application.
Operating Temp in (standard) : 150 deg for the integral switching vessel unit. 200°C (on request) |
|
|
|
