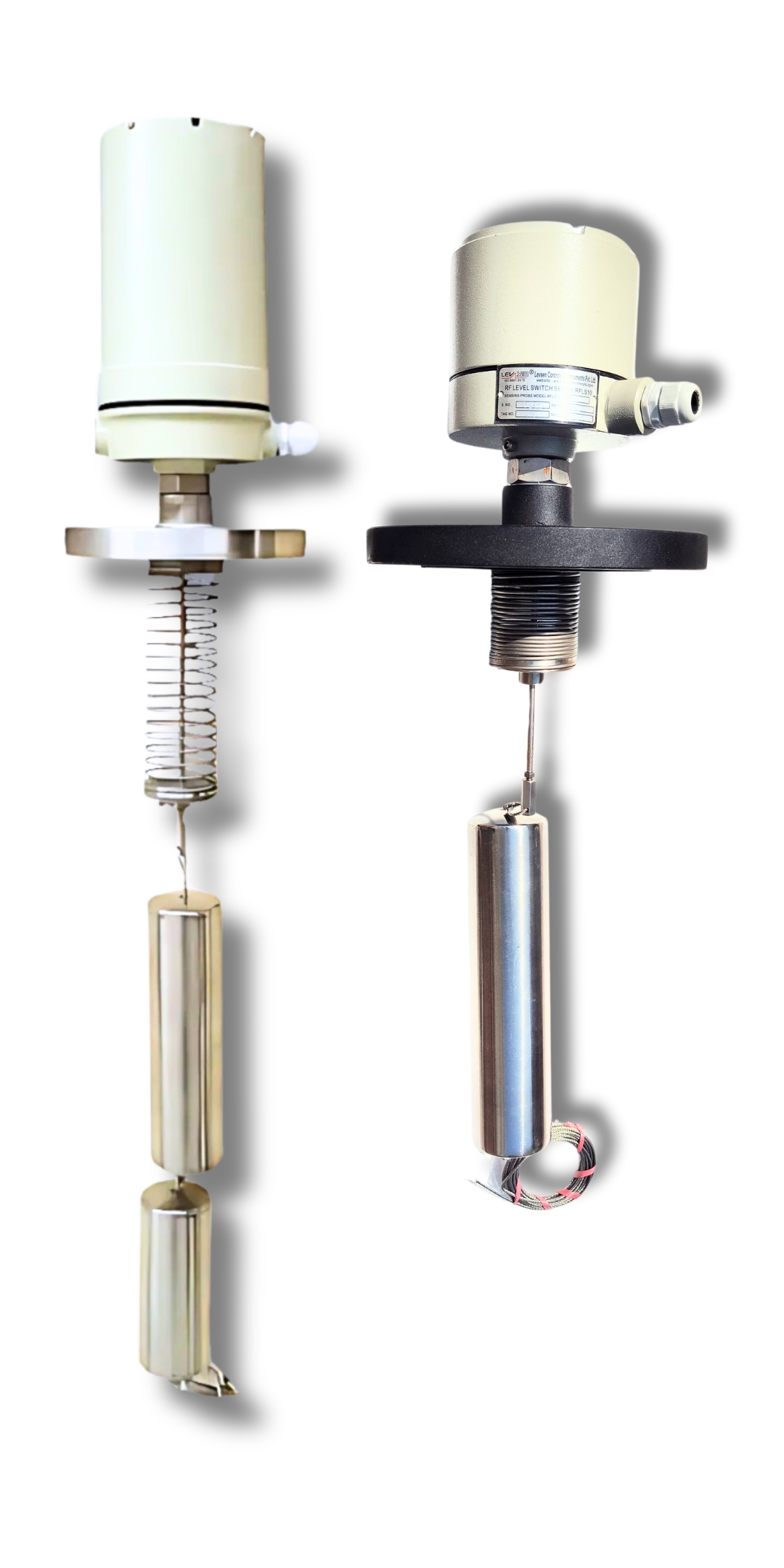

Displacer Level Switch

DISPLACER LEVEL SWITCH (SERIES DLS-30)

Displacer Level Switch is based on buoyancy principle .It is used for controlling the liquid level in underground & overhead tanks.

SPECIFICATION

Wetted part		SS304, SS316
Process Connection		Flanged / Screwed
Enclosure		Weather proof / Flame proof
Switch		Micro/ Read rating @5 Amps. , 230VAC
Contact		NO/NC (Potential Free)
No. of Contact		1, 2 or 3 Switching
Temperature		150ºC max.
Pressure		20 kg/cm² max.

Application: Large Sumps & Fuel Tanks, Boiler Feed Water, Waste Water & Sewage, Interface Liquids, Petrochemical, Generator Sealing Liquid etc.

Features
High / Low Level Alarm
Automatic Pump Control
Safety Inter Locks Circuits
Solenoid Valve Control.
Prevention of Tank overflows
Pump safeguard against dry running
