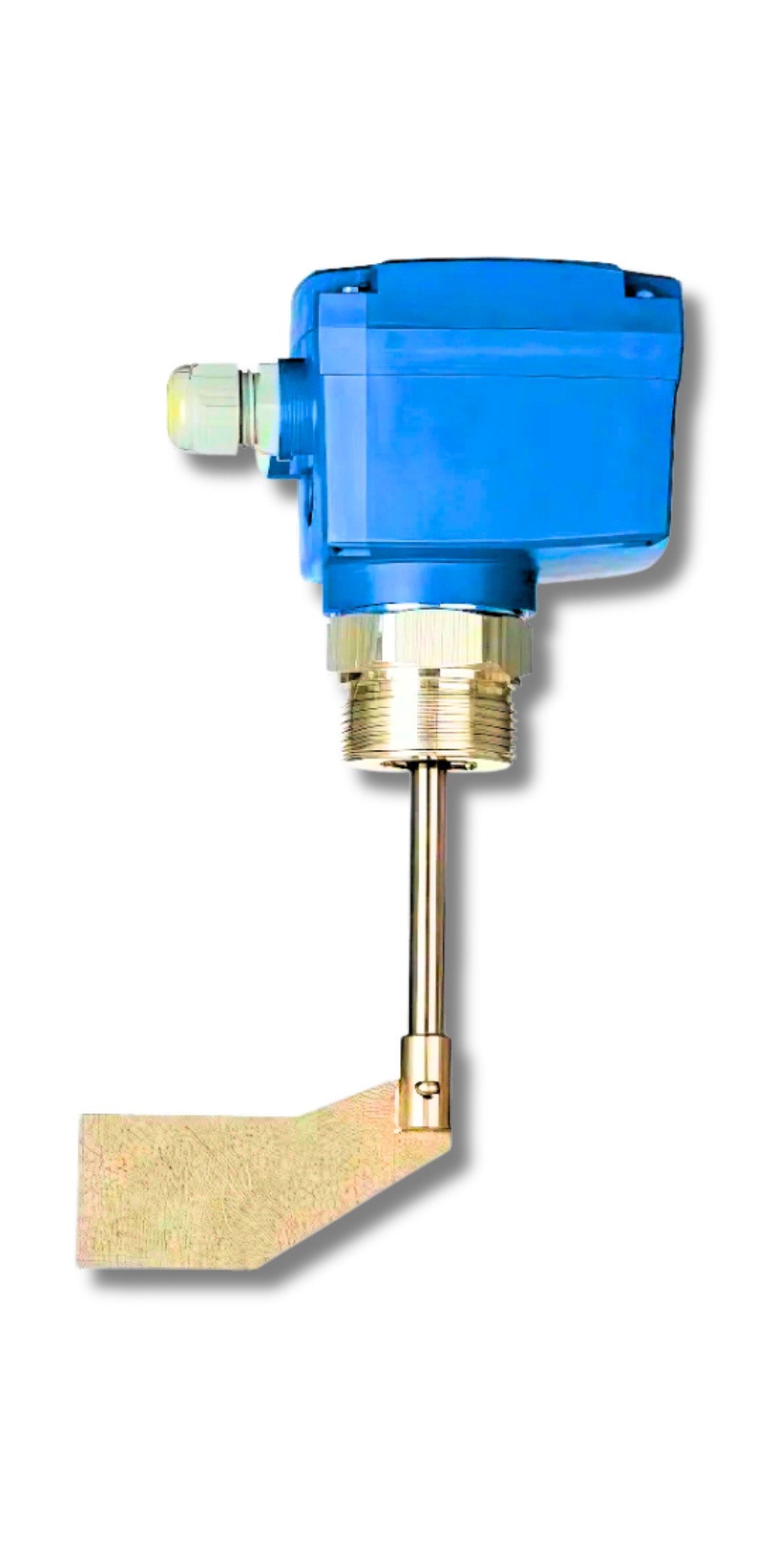

Rotary Paddle Level Switch
PADDLE TYPE LEVEL SWITCH (SERIES PTL-92)
| TECHNICAL DETAILS |
| Housing |
|
POLYMER / Cast Aluminum |
| Protrusion length |
|
150 mm standard, Extension upto 1 mtrs |
| Revolution per minute |
|
1 or 2 rpm |
| wetted parts |
|
SS ,PP |
| Process connection |
|
1-1/2” BSP/ 1” (standard) others on request. |
| Medium temperature |
|
40 °C…+90 °C |
| Electrical Cable gland |
|
2 nos. |
| Medium pressure |
|
max. 2 bar |
| Output |
|
SPDT 230 V AC, 10 A, (standard) 2X SPDT (Optional) |
| Power supply |
|
230 V AC, ±15%, |
|
| APPLICATION |
Agriculture: beet slice, hard crop, Chemical industry: plastic powders, granules, pellets
Food industry: sun flower, sun flower cod, Building industry: sand, calcium powder, gypsum, coffee and cacao powder, flour, sugar, etc. Energetics: active soot, coal powder, fly ash
|
| FEATURES |
- Level switch for powders and free flowing solids
- Flexible coupling (optional as per application)
- Extension up to 1 m
- Robust, dust and watertight housing
- Extended life by motor shut off design
- Sealed bearings
- Interchangeable paddle assemblies, Magnetic Clutch mechanism
|
|
