ROTAMETER
Rotameter is a device that measures the flow rate of liquid or gas in a closed tube.
A Rotameter consists of a tapered tube, typically made of glass, with a float inside that is pushed up by flow and pulled down by gravity. At a higher flow rate, more area (between the float and the tube) is needed to accommodate the flow, so the float rises. Floats are made in many different shapes, with spheres and spherical ellipses the most common. The float is shaped so that it rotates axially as the fluid passes. This indicates if the float is stuck, since it will only rotate if it is free.

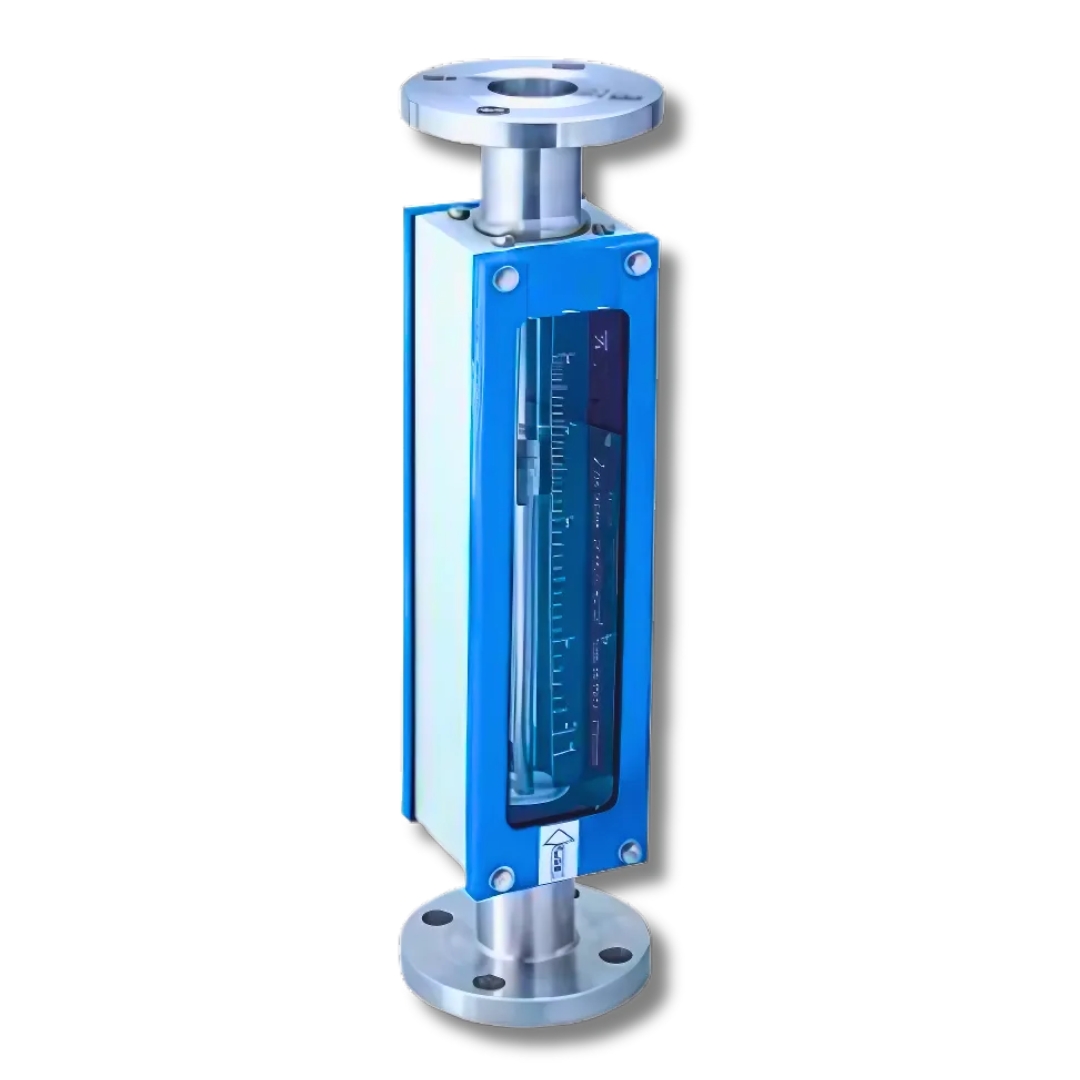

| GLASS TUBE ROTAMETER SERIES GTR-40 |
|
SPECIFICATIONS
Connection Flanged, Threaded Wetted Part S.S. 304, 316, P.P., PVC
Max. Temp. Upto 150°C
Max press. upto 10Kg/cm²
Floats S.S. 304, 316, P.P., PVC. etc.
Application:
Flow Measurement of liquid like Water, Oil, Alkalies, Organic Chemicals etc., Air and Common Gases.
|
|
 |
| METAL TUBE ROTAMETER SERIES MTR-41 |
|
SPECIFICATIONS
MOC C.S//SS.304/S.S.316/pp/PVC/Teflon lined
Wetted Part S.S. 304, 316, P.P., PVC
Line Size 15mm NB to 200mn NB.
Flow range 100 to 1, 00,000 LPH of water at ambient
temp. 30 to 7000 NM3/hour of air at NPT
Accessories:
a) Steam Jacketing.
b) High & low flow alarms.
c) 4-20mA transmitter out put.
d) Digital Indicator, Totaliser.
Application:
Flow Measurement Of Water, Acids, Organic Solvents, Salts, Gases Under High Temp. & Pressure.
|
|
 |
| ACRYLIC BODY ROTAMETER SERIES ABR-42/td>
|
|
SPECIFICATIONS
| Available Sizes: |
: 15 NB to 100 NB |
| Ranges: |
2.5 to 40,000 LPH of water at temperature upto 50 degree • 0.1 to 1000 Nm³/hr of air. |
| Accuracy: |
: ±1.5% of full scale reading |
Application:
Flow Measurement of Liquid like Water, Oil, Alkalies,
Organic Chemicals etc., Air and Common Gases. | |
|
| BY PASS ROTAMETER SERIES BPR-43 |
| SPECIFICATIONS |
|
| Available Sizes |
50NB to 450NB |
| Ranges: |
• 22 to 800 M³/hr of water.
• 0.1 to 300 Nm3/hr of air at NTP. |
Accessories :
• Isolating Valves.
• High & Low Flow Alarms.
• With 4-20 mA two wire transmitter
• Digital totaliser
• orifice assembling along with dp transmitter | |
|
|
